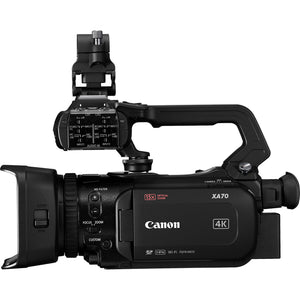

Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus (5736C002)
Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus (5736C002)Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus (5736C002)

Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus (5736C002)

Item #CAXA70   Brand: Canon
$2,024.25
In Stock – order in the next 3 hours and it ships today.
Qty:
  • Free expedited shipping on this item
  • Full U.S. manufacturer warranty included
  • 30-day return window on unopened and undamaged items
  • Questions? Call +1.800.992.2237

Product Overview

The Canon XA70 is a compact professional camcorder built around a 1-inch CMOS sensor and DIGIC DV 6 processor, delivering crisp UHD 4K30 and oversampled Full HD footage. Its integrated 15x optical zoom lens, nine-bladed circular iris, and wide DR gamma support provide excellent low-light performance and natural highlight rendering. Dual-Pixel CMOS AF, Face Detection, and a responsive 3.5-inch touchscreen LCD ensure fast, precise focusing in any shooting scenario.

Designed for documentary and ENG workflows, the XA70 offers dual XLR inputs with phantom power, four-channel LPCM audio, and dual SD card slots for relay or simultaneous recording. Pro monitoring tools like zebra, color bars, and a built-in ND filter wheel are included, while USB-C UVC output enables direct livestreaming to a computer. The detachable top handle, OLED viewfinder, and OSD metadata recording make this a versatile, production-ready camera for legal videography, journalism, and event coverage.

Key Features

Image Sensor 1"-Type CMOS
Effective Sensor Resolution 8.29 Megapixel (3840 x 2160)
Image Stabilization Optical in Integrated Lens, Digital
Max Recording Modes H.264/MP4 4:2:0 8-Bit, Up to UHD 4K at 24.00/29.97/23.98 fps, XF-AVC 4:2:0 8-Bit, Up to UHD 4K at 24.00/29.97/23.98 fps
Max Video Output 4:2:2 8-Bit, Up to 1080p at 29.97/23.98 fps, 4:2:2 10-Bit, Up to 1080p at 29.97/59.94/23.98 fps
Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O 1x Mini-HDMI Output
Mobile App Compatible No
Battery Canon BP-8 Series
Brand Canon
Product Type Professional Camcorder
Built-In ND Filter Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16) ND Filters
Capture Type Stills & Video
Shutter Type Electronic Rolling Shutter
Shutter Speed 1 to 1/2000 Second
Minimum Illumination 1.7 Lux at 1/30 Shutter Speed, 0.1 Lux at 1/2 Shutter Speed
White Balance Range: 2000 to 15,000K
Focal Length 8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm)
Zoom 15x Optical
Maximum Aperture f/2.8 to 4.5
Minimum Focus Distance 2' / 60 cm
Filter Size 58 mm
Focus Mode Automatic, Manual Focus
Internal Recording H.264/MP4 4:2:0 8-Bit, 3840 x 2160 at 24.00/29.97/23.98 fps, 1920 x 1080p at 23.98/24.00/29.97/59.94 fps (35 to 45 Mb/s), 1280 x 720 at 59.94 fps (8 Mb/s), XF-AVC 4:2:0 8-Bit, 3840 x 2160 at 24.00/29.97/23.98 fps, 1920 x 1080p at 23.98/24.00/29.97/59.94 fps
Broadcast Output NTSC
Fast-/Slow-Motion Support Yes
Built-In Microphone Stereo
Audio Recording MP4: 2-Channel, 16-Bit via AAC Audio, MP4: 4-Channel, 16-Bit via LPCM Audio, XAVC: 4-Channel, 24-Bit via LPCM Audio
Internal Storage No
Audio I/O 2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power), 1x 1/8" / 3.5 mm TRS Stereo Headphone Input, 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O 1x USB-C Input
Other I/O 1x USB-C Output, 1x 2.5 mm Sub-Mini (LANC) Control Input
Wireless No
Global Positioning (GPS, GLONASS, etc.) No
Display Type Primary Monitor: Articulating 3.5" Touchscreen LCD
Viewfinder Type Electronic (OLED)
Viewfinder Resolution 1,770,000 Dot
Power Consumption 5.3 W
Shoe Mount 1x Cold Shoe on Included Handle
Tripod Mount 1/4"-20 Female
Dimensions (W x H x D) 8.4 x 4.3 x 3.6" / 21.3 x 10.9 x 9.1 cm
Weight 2.2 lb / 985 g (Body Only), 3.2 lb / 1460 g (With Handle, Recording Media, Battery)
Package Weight 5.8 lb
Box Dimensions (LxWxH) 14.3 x 11.8 x 9.1"

Highlights

  • ✓ 1" CMOS Sensor, DIG!C DV 6 Processor
  • ✓ Up to UHD 4K30 Video Recording
  • ✓ Mini-HDMI Output
  • ✓ Integrated 15x Optical Zoom Lens

What's included

  • ✓ Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus
  • ✓ Canon PD-E1 USB Power Adapter
  • ✓ Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh)
  • ✓ Lens Hood with Lens Cover
  • ✓ Handle
  • ✓ Microphone Holder
  • ✓ Limited 1-Year Manufacturer Warranty

Downloads

Frequently asked questions

Does this camera possess the ability to record in infrared? And if so, can you record say 1080p60 with it in that mode?

Yes, the Canon XA70 does have low light and IR night recording modes. Canon's IR mode will allow you to record in darkness using infrared recording, and the built-in infrared light on the handle unit, you can record nocturnal animals in their natural environment or other such scenes.

Still no wifi capabilty??

The Canon XA70 does not support or come with WIFI.

Is the mic holder independently detachable, leaving the handle and xlr assembly intact?

Yes, the cameras top handle, and also the mic holder can be removed from the Canon XA70 camcorder. The mic holder can be removed alone from the XLR unit without removing the top handle as well.

What is the difference between the XA60 and the XA70?

Although both cameras are similar in many aspects, such as internal recording, the Canon XA60 Professional UHD 4K Camcorder provides a 1/2.3" CMOS Sensor. In contrast, the Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus provides a larger 1" CMOS Sensor. The larger sensor offers improved low light and shallow depth of field behind a subject. The Canon XA60 Professional UHD 4K Camcorder also provides a longer optical zoom reach of 20x and does not offer an internal neutral density filter wheel. The Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus provides a shorter optical zoom reach of 15x and does offer an internal neutral density filter wheel.

Shipping & Warranty

ConditionNew (U.S. Warranty)
Warranty1-Year Limited Manufacturer Warranty
Shipping Weight5.8 lb
Returns30 days, original condition and packaging
