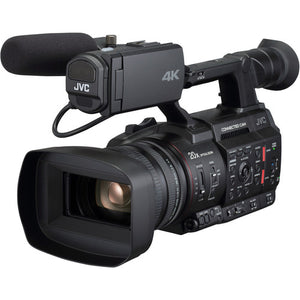

JVC GY-HC500U 1" 4K Professional Camcorder (GY-HC500U Camcorder)
JVC GY-HC500U 1" 4K Professional Camcorder (GY-HC500U Camcorder)JVC GY-HC500U 1" 4K Professional Camcorder (GY-HC500U Camcorder)JVC GY-HC500U 1" 4K Professional Camcorder (GY-HC500U Camcorder)JVC GY-HC500U 1" 4K Professional Camcorder (GY-HC500U Camcorder)JVC GY-HC500U 1" 4K Professional Camcorder (GY-HC500U Camcorder)

JVC GY-HC500U 1" 4K Professional Camcorder (GY-HC500U Camcorder)

Item #JVGYHC500U   Brand: JVC
$1,871.25
In Stock – order in the next 3 hours and it ships today.
Qty:
  • Free expedited shipping on this item
  • Full U.S. manufacturer warranty included
  • 30-day return window on unopened and undamaged items
  • Questions? Call +1.800.992.2237

Product Overview

The JVC GY-HC500U is a professional UHD 4K camcorder built around a 1-inch CMOS sensor, delivering high sensitivity and a wide dynamic range for demanding production environments. Its integrated 20x optical zoom lens with three manual control rings provides precise command over focus, iris, and zoom, while the 40x lossless dynamic zoom extends your reach without sacrificing image quality.

Designed for modern hybrid workflows, this camera captures 10-bit ProRes 422 at 4K 60p to an optional SSD while simultaneously recording 4:2:0 8-bit 4K to dual SD card slots. Advanced IP connectivity enables high-quality 1080p live streaming with SRT protocol support, auto FTP for seamless file transfer, and return video with IFB, making it a versatile tool for broadcast, sports, and live event production.

Key Features

Image Sensor 1"-Type CMOS
Effective Sensor Resolution 9.35 Megapixel
Image Stabilization Optical in Integrated Lens
ISO/Gain Sensitivity Gain: -6 to 24 dB (30 to 36 dB Extended); Native: 400 to 25,600
Max Recording Modes H.264 4:2:2 10-Bit up to UHD 4K at 29.97 fps; ProRes 422/422 HQ/422LT 4:2:2 10-Bit UHD 4K up to 59.94 fps
Max Video Output via HDMI: UHD 4K; via SDI/BNC: 1080p
Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]
Mobile App Compatible No
Battery JVC BN-VC296G
Brand JVC
Product Type Professional Camcorder
Built-In ND Filter Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type Video Only
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/6 Second
Sensitivity f/11 at 2000 lux 89% Reflectance
White Balance Presets: ATW, AWB; Range: 2300 to 15,000K
Focal Length 9.4 to 188.6mm (35mm Equivalent: 28 to 560mm)
Zoom 20x Optical / 40x Digital
Maximum Aperture f/2.8 to 4.5
Filter Size 82 mm
Control Rings Focus, Zoom, Iris
Focus Mode Automatic, Manual Focus
Internal Recording H.264 4:2:2 10-Bit: 3840 x 2160 at 24.00/25/29.97 fps (70 to 50 Mb/s); ProRes 422/422 HQ/422LT 4:2:2 10-Bit: 3840 x 2160 up to 50/59.94 fps
Video Output via HDMI: 3840 x 2160; via SDI/BNC: 1920 x 1080p
Built-In Microphone Stereo
Audio Recording MP4: 2-Channel, 16-Bit at 48 kHz via AAC/LPCM Audio
IP Streaming MPEG2, RTMP, RTP, RTSP, TCP, UDP: 640 x 360 to 1920 x 1080 at 50p, 59.94p (0.3 to 20.00 Mb/s)
Internal Storage No
Video I/O 1x BNC (3G-SDI) Output, 1x HDMI Output, 1x 1/8" / 3.5 mm TRRS A/V (Composite) Output
Audio I/O 2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power), 1x 1/8" / 3.5 mm TRS Stereo Microphone Input, 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O 1x Barrel (12VDC) Input
Other I/O 1x 2.5 mm Sub-Mini, 1x RCA (Timecode), 1x Unspecified USB (LAN) Data, 1x RJ45 (LAN), 1x 2.5 mm Sub-Mini Control
Wireless Wi-Fi
Global Positioning (GPS, GLONASS, etc.) GPS
Display Type Primary Monitor: Articulating 4" Non-Touchscreen LCD
Display Resolution Primary Monitor: 800 x 480
Viewfinder Type Electronic (LCOS)
Viewfinder Resolution 1280 x 960 (1,228,800 Dot)
Shoe Mount 1x Hot Shoe on Included Handle
Tripod Mount 1/4"-20 Female, 3/8"-16 Female
Accessory Mounting Thread 1x 1/4"-20 on Included Handle
Dimensions (W x H x D) 7.7 x 9.1 x 17.5" / 195 x 230 x 445 mm
Weight 7.94 lb / 3.6 kg (Body Only)
Package Weight 11.195 lb
Box Dimensions (LxWxH) 21.3 x 12.3 x 12.1"

Highlights

10-bit ProRes 422 at 4K resolution and 50/60p frame rates and recording to M.2 SSD (requires optional caddy)
4K UHD 30/25/24p 4:2:0 8-bit recording to SDHC/SDXC card
HDR recording, HLG or J-Log1 (10-bit)
1" (effective) CMOS sensor with high picture quality, F11 Sensitivity
3-ring 4K lens with 20x optical zoom (f=28-560mm, 35mm equivalent), 40x lossless dynamic zoom
4" high-resolution LCD monitor, LCOS Quad VGA viewfinder
XLR audio connectors

Warranty

Limited 2-Year Manufacturer Warranty (Parts)
Limited 1-Year Manufacturer Warranty (Labor)

What's included

  • JVC GY-HC500U Handheld Connected Cam 1" 4K Professional Camcorder
  • JVC 9600mAh Battery for GY-HC500/HC550 Connected Cam Camcorder
  • Lens Hood
  • AC Adapter
  • Power Cable
  • Limited 2-Year Manufacturer Warranty (Parts)
  • Limited 1-Year Manufacturer Warranty (Labor)

Downloads

Frequently asked questions

What battery does the GY-HC500U use?

The camcorder uses the JVC BN-VC296G battery. A 9600mAh battery is included in the box.

Can this camcorder live stream over Wi-Fi?

It can stream over Wi-Fi when equipped with the optional JVC HD65U Wi-Fi adapter. Wired streaming is supported natively via the LAN terminal.

What recording formats are supported?

The camera records 10-bit ProRes 422 at 4K 50/60p to an optional SSD, and 4K UHD 30p 4:2:0 8-bit to SDHC/SDXC cards. It also supports H.264 in various resolutions down to 480p.

Does the GY-HC500U have built-in ND filters?

Yes, it features a mechanical filter wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), and 6-Stop (1/64) ND filters.

Shipping & Warranty

ConditionNew (U.S. Warranty)
Warranty1-Year Limited Manufacturer Warranty
Shipping Weight11.2 lb
Returns30 days, original condition and packaging
